Technical Specification
| Catalogue No. | PFP/RS/09 |
| Type of Ex-Protection | AS PER IS 2148-2004 / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | High Pressure Die Cast Aluminum Alloy LM6 |
| Switch | Upto 32 A SP / DP / TP |

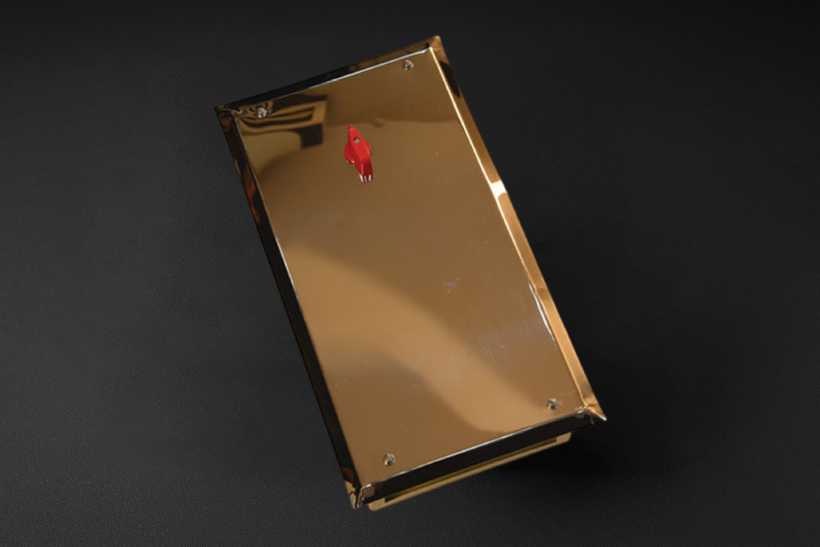

| Clean Room Purpose | M.S. Box with S.S. 304 Cover Plate |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 or 03 Nos. for M20 (3/4” ET) |
| Hardware | Stainless Steel |
