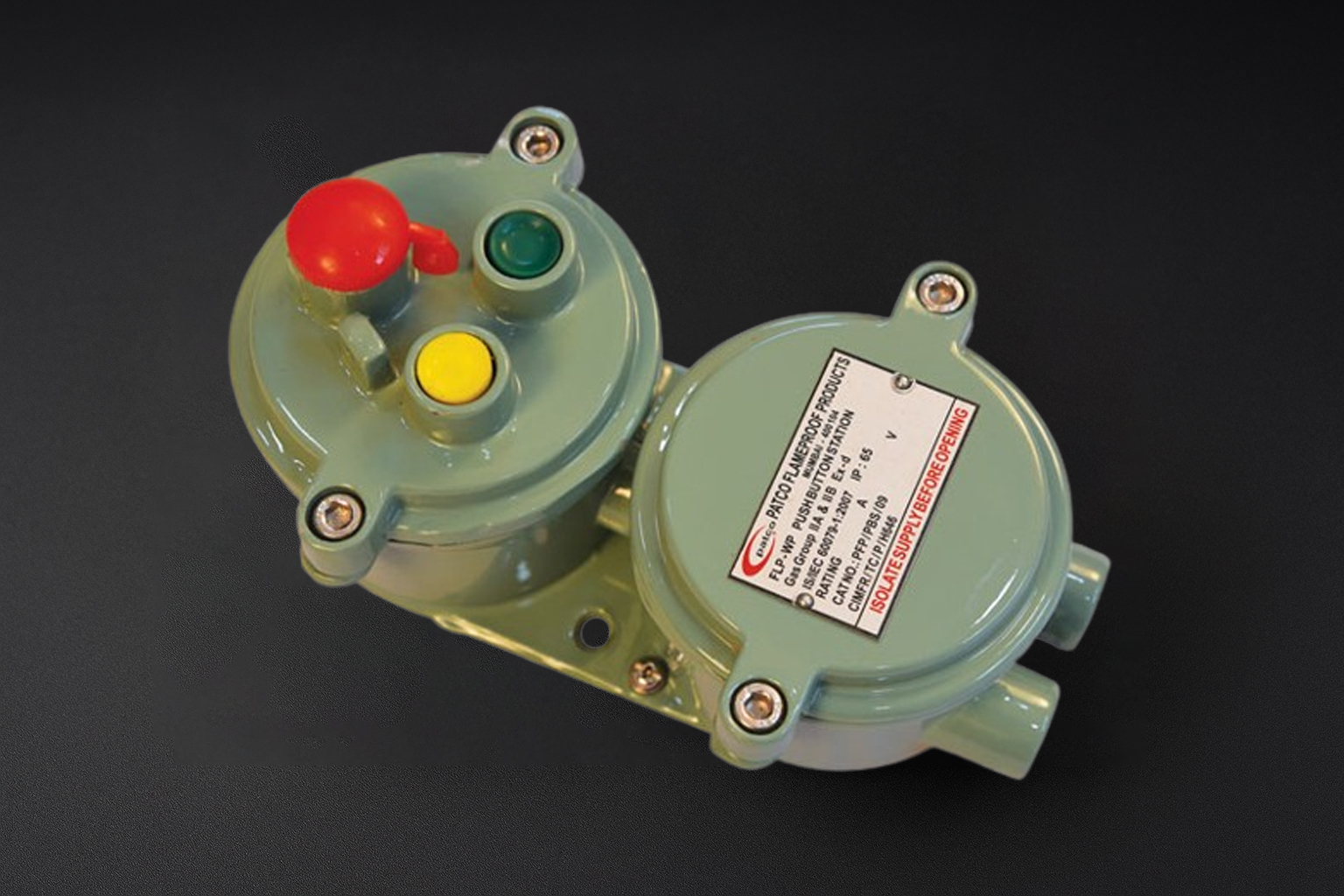

Flameproof Reverse Forward Push Button - Technical Specification
| Catalogue No. | PFP/PBS/09 |
| Type of Ex-Protection | AS PER IS 2148-2004 / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | High Pressure Die Cast Aluminum Alloy LM6 |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 (3/4” ET) |
| Hardware | Stainless Steel |
| Yellow Push Button | REVERSE with 1 NO Contact Element 10 AMP |
| Green Push Button | FORWARD with 1 NO Contact Element 10 AMP |
| Red Push Button | STOP Mushroom Head Pad Lock with 1 NC Contact 10AMP |
We are manufacturers and suppliers of flameproof reverse forward push button station in Mumbai, India with premium designed, long lasting strength and international quality standards. We have wide range of flameproof / explosion proof products with assured safety features and client’s demands. This push button is two basic principles of working like reverse direction and forward direction as per the requirements.
