Technical Specification
| Indoor Or Outdoor Gland For Single Wire Armoured Cables | ||||||

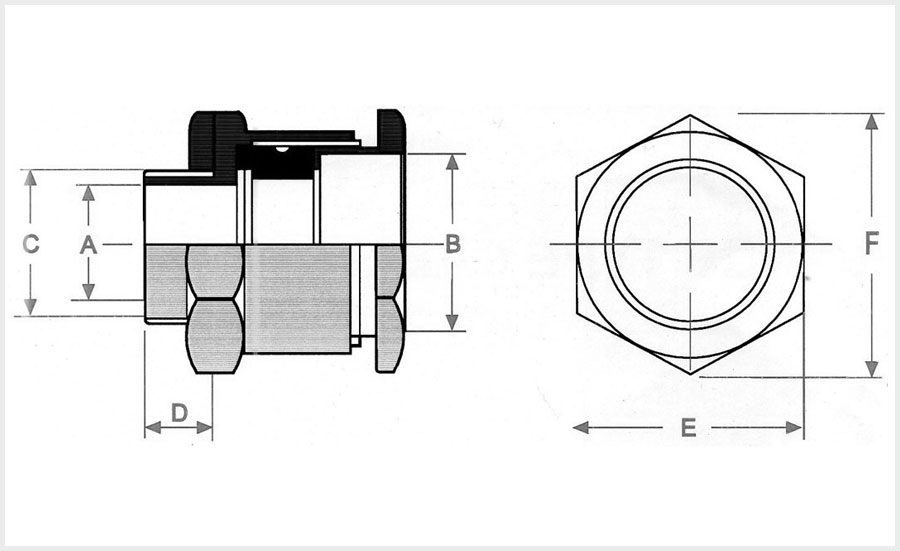

| Gland Reference | Cable Dimensions | Gland Dimensions | ||||
| Diameter | Entry Thread | Across Flats | Across Corners | |||
| Under Armour (A) |
Overall Diameter B) |
Entry | Length | |||
| (C) | (D) | (E) | (F) | |||
| Size | mm | mm | mm | mm | mm | mm |
| 1616 | 9.0 | 15.0 | 5/8" | 9.5 | 25.0 | 29.0 |
| 1619 | 10.0 | 15.0 | 3/4" | 9.5 | 25.0 | 29.0 |
| 2119 | 14.0 | 20.0 | 3/4" | 9.5 | 31.5 | 35.0 |
| 2125 | 14.0 | 20.0 | 1" | 9.5 | 31.5 | 35.0 |
| 2925 | 20.0 | 26.0 | 1" | 10.0 | 40.0 | 46.0 |
| 2932 | 24.0 | 29.0 | 11/4" | 10.0 | 40.0 | 46.0 |
| 2938 | 24.0 | 29.0 | 11/2" | 10.0 | 40.0 | 46.0 |
| 3638 | 31.0 | 37.0 | 11/2" | 11.0 | 51.0 | 57.0 |
| 4251 | 36.0 | 42.0 | 2" | 11.0 | 60.0 | 68.0 |
| 5451 | 44.0 | 50.0 | 2" | 12.0 | 68.0 | 78.0 |
| 5463 | 44.0 | 50.0 | 21/2" | 12.0 | 68.0 | 78.0 |
| 6063 | 54.0 | 60.0 | 21/2" | 12.0 | 78.0 | 90.0 |
| 6675 | 60.0 | 66.0 | 3" | 13.0 | 84.0 | 96.0 |
| 7882 | 70.0 | 77.0 | 31/4" | 15.0 | 99.0 | 112.0 |
For use under most climatic conditions. This are Weatherproof and may be used in corrosive conditions when protected by the shroud.
Gland consist of:
- Checknut
- Gland Body
- Metal Washer
- Outer Seal Rubber Ring
- Compression Nut
All metal parts are made of brass accurately machined for ease of assembly.
Patco flameproof glands are approved by Central Mining Research Center, Dhanbad.
