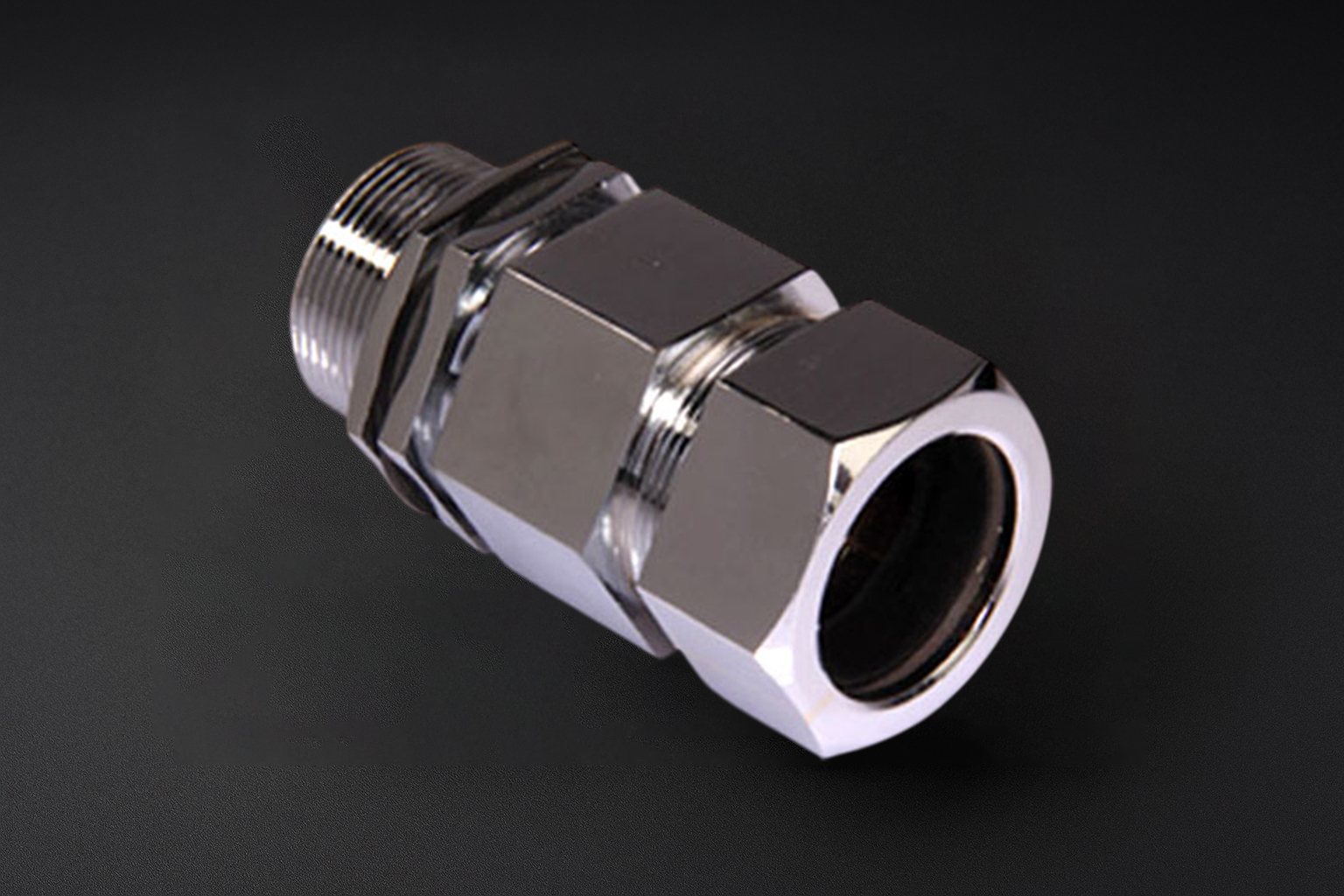

Technical Specification
| Indoor Or Outdoor Gland For Single Wire Armoured Cables | |||||||
| Gland Reference | Cable Dimensions | Gland Dimensions | |||||
| Entry Thread | Across Flats |
Across Corners |
|||||
| Diameter | Armour Wire Diameter |
Entry | Length | ||||

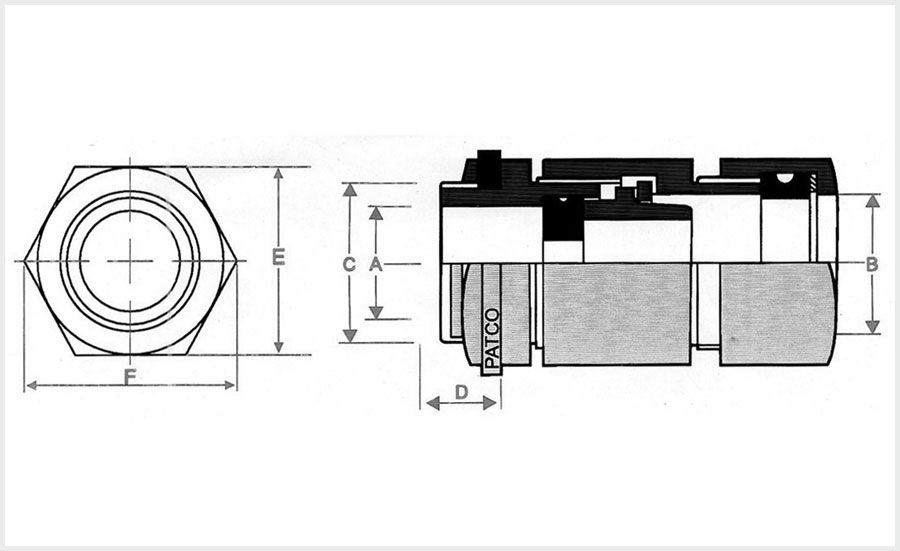

| Under Armour (A) |
Overall Diameter (B) |
(C) | (D) | (E) | (F) | ||
| Size | mm | mm | mm | mm | mm | mm | mm |
| PBF01SS | 8.0 | 12.0 | 0.8/1.4 | 3/4" | 15.0 | 21.0 | 23.5 |
| PBF01S | 10.0 | 16.5 | 0.8/1.4 | 3/4" | 15.0 | 25.0 | 29.0 |
| PBF01 | 12.0 | 18.0 | 0.8/1.4 | 3/4" | 15.0 | 28.0 | 32.0 |
| PBFO1A | 12.0 | 18.0 | 0.8/1.4 | 1" | 15.0 | 28.0 | 32.0 |
| PBF02 | 14.0 | 20.0 | 0.8/1.4 | 1" | 15.0 | 31.5 | 36.5 |
| PBFO2A | 14.0 | 20.0 | 0.8/1.4 | 3/4" | 15.0 | 31.5 | 36.5 |
| PBF03 | 17.0 | 23.0 | 0.8/1.4 | 3/4" | 15.0 | 32.0 | 37.0 |
| PBF04 | 20.0 | 26.0 | 0.8/1.4 | 1" | 15.0 | 38.0 | 44.0 |
| PBFO4A | 20.0 | 26.0 | 0.8/1.4 | 11/4" | 15.0 | 38.0 | 44.0 |
| PBF05 | 24.0 | 30.0 | 0.8/1.4 | 11/4" | 15.0 | 41.0 | 47.0 |
| PBFO5A | 24.0 | 30.0 | 0.8/1.4 | 11/2" | 15.0 | 41.0 | 47.0 |
| PBF06 | 27.0 | 33.0 | 0.8/1.4 | 11/2" | 15.0 | 47.0 | 54.0 |
| PBFO6A | 27.0 | 33.0 | 0.8/1.4 | 11/4" | 15.0 | 47.0 | 54.0 |
| P8F07 | 30.0 | 37.0 | 0.8/1.4 | 11/2" | 15.0 | 52.0 | 58.0 |
| PBF08 | 35.0 | 41.0 | 0.8/1.4 | 2" | 15.0 | 56.0 | 64.0 |
| PBF09 | 40.0 | 46.0 | 0.8/1.4 | 2" | 15.0 | 59.0 | 67.0 |
| PBF010 | 46.0 | 52.0 | 0.8/1.4 | 2" | 20.0 | 67.5 | 77.0 |
| PBF010A | 46.0 | 52.0 | 0.8/1.4 | 21/2" | 20.0 | 67.5 | 77.0 |
| PBF011 | 54.0 | 60.0 | 0.8/1.4 | 21/2" | 20.0 | 80.0 | 92.0 |
| PBF012 | 60.0 | 67.0 | 0.8/1.4 | 3" | 20.0 | 85.0 | 98.0 |
| PBF013A | 66.0 | 72.0 | 0.8/1.4 | 3" | 20.0 | 90.0 | 99.0 |
| PBF013 | 72.0 | 78.0 | 0.8/1.4 | 31/4" | 20.0 | 99.0 | 113.0 |
For use in hazardous atmosphere and most climatic condition. This are Weatherproof, Waterproof and Flameproof, may be used in corrosive conditions when protected by a shroud.
Gland consist of:
- Checknut
- Gland Body
- Neoprene Inner Ring
- Armour Clamping Cone
- Armour Clamping Ring
- Armour Clamping Nut
- Neoprene Outer Ring
- Skid Washer
- Outer Seal Nut
All metal parts are made of brass accurately machined for ease of assembly.
Patco flameproof glands are approved by Central Mining Research Center, Dhanbad.
